Pipe Ø (OD) | 15 – 170 mm (0.6“ – 6.7“) |
Wall thickness | 8 mm (0.31“) st, 14 mm (0.55“) pl |
Cuts the following pipe materials | Steel, copper, cast iron, stainless steel, acid-resistant steel, multi-layered materials and all plastics |
Loading capacity of supports | 190 kg, 418 lb (4 supports) |
Voltage / Power | 230V / 1200W |
Voltage / Current | 110V, 120V / 9.2A |
No-Load speed | 1600 – 3500 r/min |
Blade diameter | 140mm (5.51”) |
Mounting bore | 62mm (2.44”) |
Weight | 5,7kg (12 lbs) |
Range of use Ø | 15mm – 170mm (0.6”- 6.7”) |
Max. pipe wall | 8mm (0.31”) st, 14mm (0.55”) pl |
Electronical unit | Blade speed preselection, automatic fuse, soft start, torque control |
Speed preselection | 4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials |
The price includes
- PipeCut Bag 2

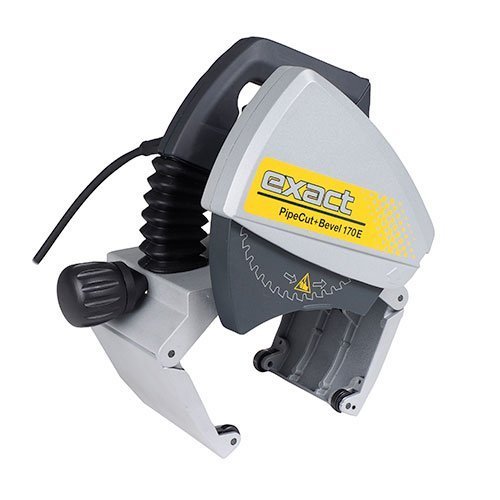

- Exact PipeCut 170E pipe saw
- Pipe Support 170, 4pcs
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 140 blade fitted to the machine
- DVD video disc including instructions
