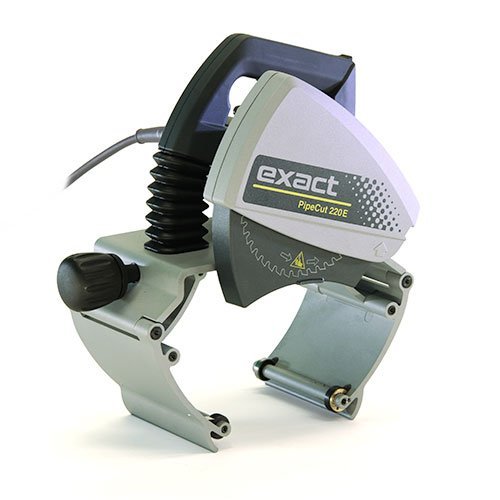

You get power plus a wide cutting capacity with PipeCut 220E. It can be used for cutting both steel and plastic pipes; the machine has adjustable motor speed and constant torque. Because of its heavy-duty design it is ideal for use in both the workshop or on site for a multitude of different pipe applications.
Includes
- PipeCut Bag 3
- Exact PipeCut 220E pipe saw
- Pipe Support 280, 4pcs
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 140 blade fitted to the machine
- DVD video disc including instructions
Specifications
| Pipe Ø (OD) | 15mm – 220mm (0.6”- 8.6”) |
| Wall thickness | 6mm (0.23”) st, 14mm (0.55”) pl |
| Cuts the following pipe materials | Steel, copper, cast iron, stainless steel, acid-resistant steel, multi-layered materials and all plastics |
| Voltage / Power | 230V / 1200W |
| Voltage / Current | 110V, 120V / 9.2A |
| No-Load speed | 1600 – 3500 r/min |
| Blade diameter | 140mm (5.51”) |
| Mounting bore | 62mm (2.44”) |
| Weight | 6,0kg (13 lbs) |
| Range of use Ø | 15mm – 220mm (0.6”- 8.6”) |
| Max. pipe wall | 6mm (0.23”) st, 14mm (0.55”) pl |
| Electronical unit | Blade speed preselection, automatic fuse, soft start, torque control |
| Speed preselection | 4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials |
| Loading capacity of supports | 314 kg , 692 lb (4 supports) |
